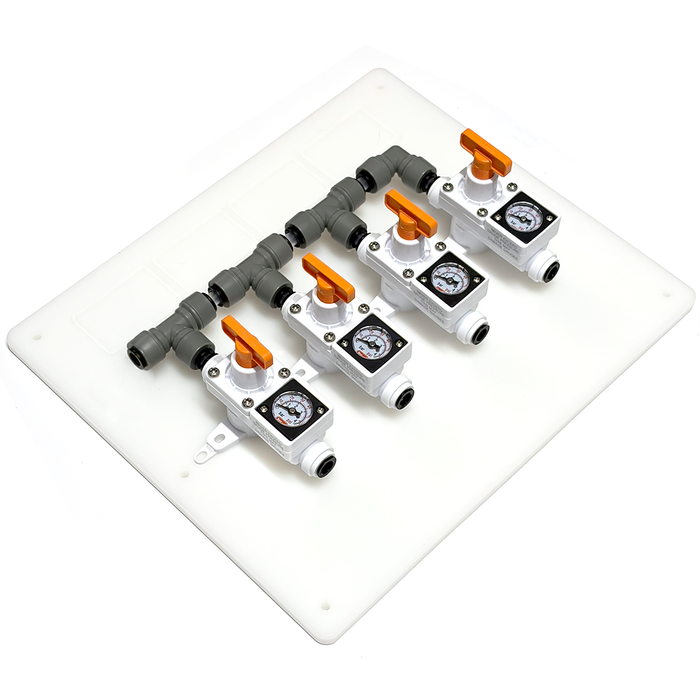

4 Output Gas Regulation & Monitoring Display Board

Used to independently control and monitor 4 gas line pressures from one centralised management centre.

This gas board is a smart solution for managing CO₂ and nitrogen across a multi-keg draft system. It allows you to control, monitor, and display line pressures for each keg when inline regulators are mounted. All mounting holes, both for the wall and the regulators, are pre-drilled, making installation straightforward.

The mounting board itself also includes 4 sections for labelling each outlet using a sticker or a marker.

This particular bundle includes all the fittings to independently control and monitor the line pressure of 4 kegs using a sleek and easy to use management system.

Each inline regulator lets you adjust the gas pressure on its output line anywhere from 0-60 psi, up to the pressure being supplied to the board. These inline regulators work by reducing pressure only, they cannot increase it. This means the outlet pressure can never be higher than the pressure coming into the display board.

For example, if your gas cylinder and primary regulator are supplying 45 psi to the board, the highest pressure you can set on any inline regulator is also 45 psi.

Note: Mounting screws and hardware are not included.

Includes:

• 4 x 8mm duotight Inline regulators

• 3 x 8mm duotight T-Pieces

• 1 x 8mm duotight elbow

• 7 x 50mm length 8mm duotight male rigid joiner

Specifications:

Dimensions: 260 mm × 300 mm
