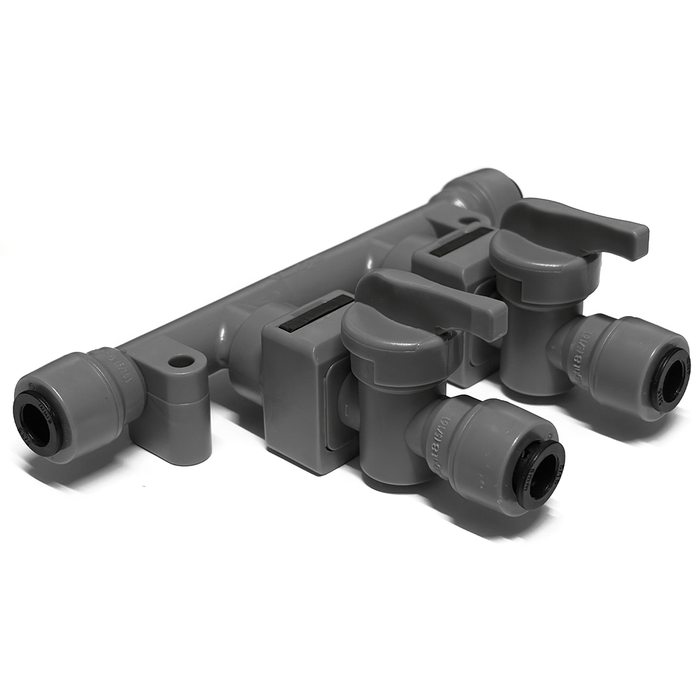

2 Way Gas Manifold x 8mm Duotight Female - Gas Line Splitter

Gas line splitter with independent check valves, isolation valves and 8mm duotight connections.

Gas manifolds are a great way to manage gas lines and independently stop or allow the flow of gas to independent kegs. The outlets on this manifold can be independently shut off and feature removable one way check valves.

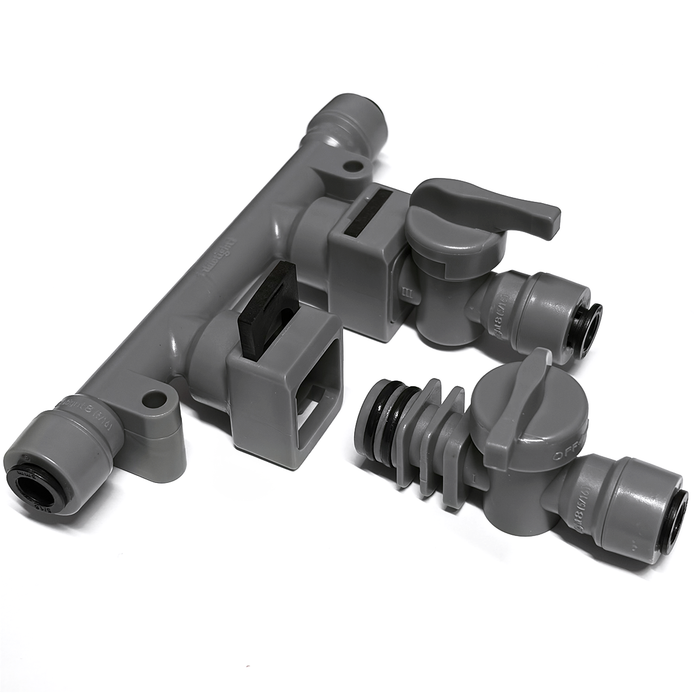

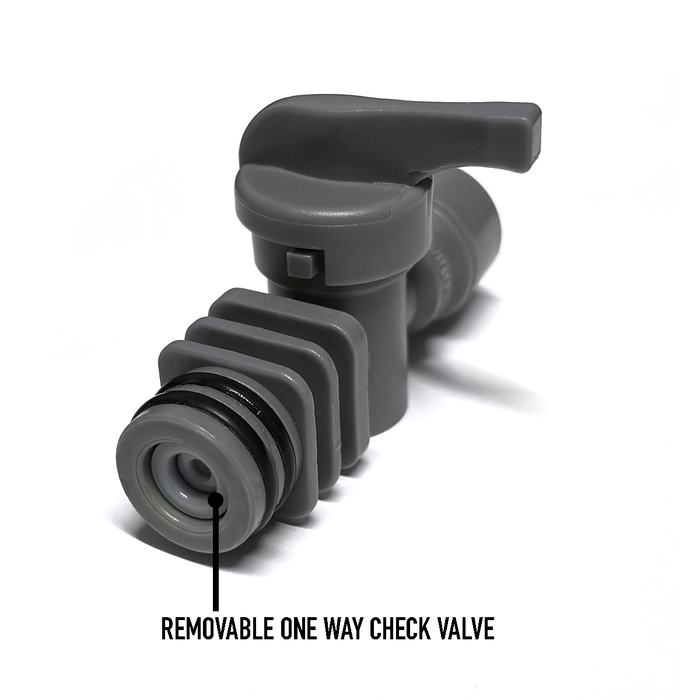

This manifold comes fitted with one check valve per outlet. Each check valve can also be removed if you want gas or water to move freely in both directions. To remove the one way valve use a thin flat headed screw driver, then simply pop the black retainer tabs and remove the ball valve.

Also included are built-in mounting holes that are ready to install straight out of the box using standard button-head screws. If you'd prefer a non destructive mounting option we would suggest opting for Duotight 8mm Adhesive mounting brackets.

If you are not using all of the outlets you can use an 8mm Duotight Plug to blank off that particular outlet.

(not suitable for liquids other than filtered water)

COMPATIBLE WITH:

5mm x 8mm EVA Tubing - Per Meter
5mm x 8mm EVA Tubing - 12m Roll
4mm x 8mm EVA Tubing - Per Meter
4mm x 8mm EVA Tubing - 12m Roll

Features:

Push-Fit Design: Duotight fittings utilise a push-fit mechanism, which allows you to easily insert tubing into the fitting without the need for clamps or additional tools. This makes installation and removal quick and convenient.

Leak-Free Seal: These fittings are designed to create a tight, leak-free seal, ensuring that liquids and gases do not escape from the connection. This is especially important in applications involving pressurized systems, such as draft beer setups. Duotight fittings are less likely to leak thanks to the dual o-ring system.

Reusability: They can be easily disconnected and reused, which is beneficial for systems that require frequent cleaning or reconfiguration.
